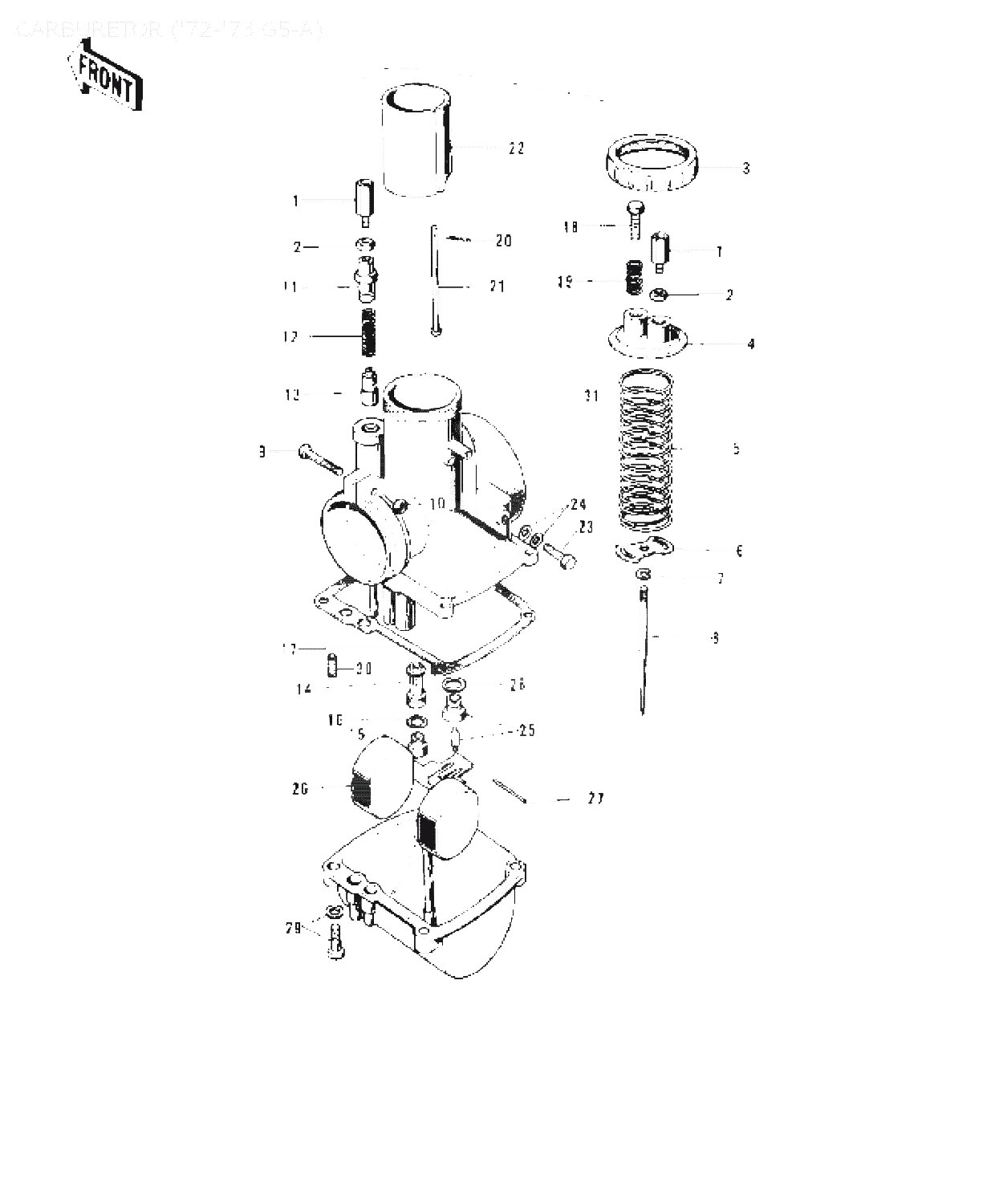

0
16001-142
CARBURETOR ASSY
*
2
16003-004
NUT CABLE ADJUST LOCK, åtgår 2st
*
3
16004-010
CAP MIXING CHAMBER
158:-
4
16005-005
TOP MIXING CHAMBER
158:-
5
16006-013
SPRING THROTTLE VALVE
*
6
16007-002
SPRING SEAT THRTL VLV
*
7
16008-010
CIRCLIP
*
8
16009-026
JET NEEDLE 5J-7
*
9
16010-004
SCREW CLAMP
50:-
10
311B0-600
NUT-HEX,6MM
*
11
16012-004
CAP STARTER PLUNGER
94:-
12
16013-003
SPRING-PLUNGER
54:-
13
16016-002
PLUNGER-ENRICHNER
230:-
14
16017-056
NEEDLE JET E-4
*
15
92063-1028
MAIN JET,#A102.5
130:-
15
92063-1042
MAIN JET,#A105R
123:-
16
16034-001
WASHER MAIN JET
40:-
18
16021-002
SCREW,THROTTLE STOP
142:-
19
16022-005
SPRING THR STOP SCREW
70:-
20
550D1-210
PIN COTTER 1.2X10
*
21
16024-012
ROD,THROTTLE VLV STP
81:-
22
16025-054
VALVE,THROTTLE CA.2.5
961:-
23
92001-014
BOLT BANJO
148:-
24
751P0-800
GASKET 8MM, åtgår 2st
*
25
16030-001
FLOAT VALVE ASSY
452:-
26
16031-015
FLOAT
452:-
28
16029-002
WASHER VALVE SEAT
39:-
30
92064-020
PILOT JET #17.5 ISO
156:-
31
92061-019
CONNECTOR-BANJO
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
