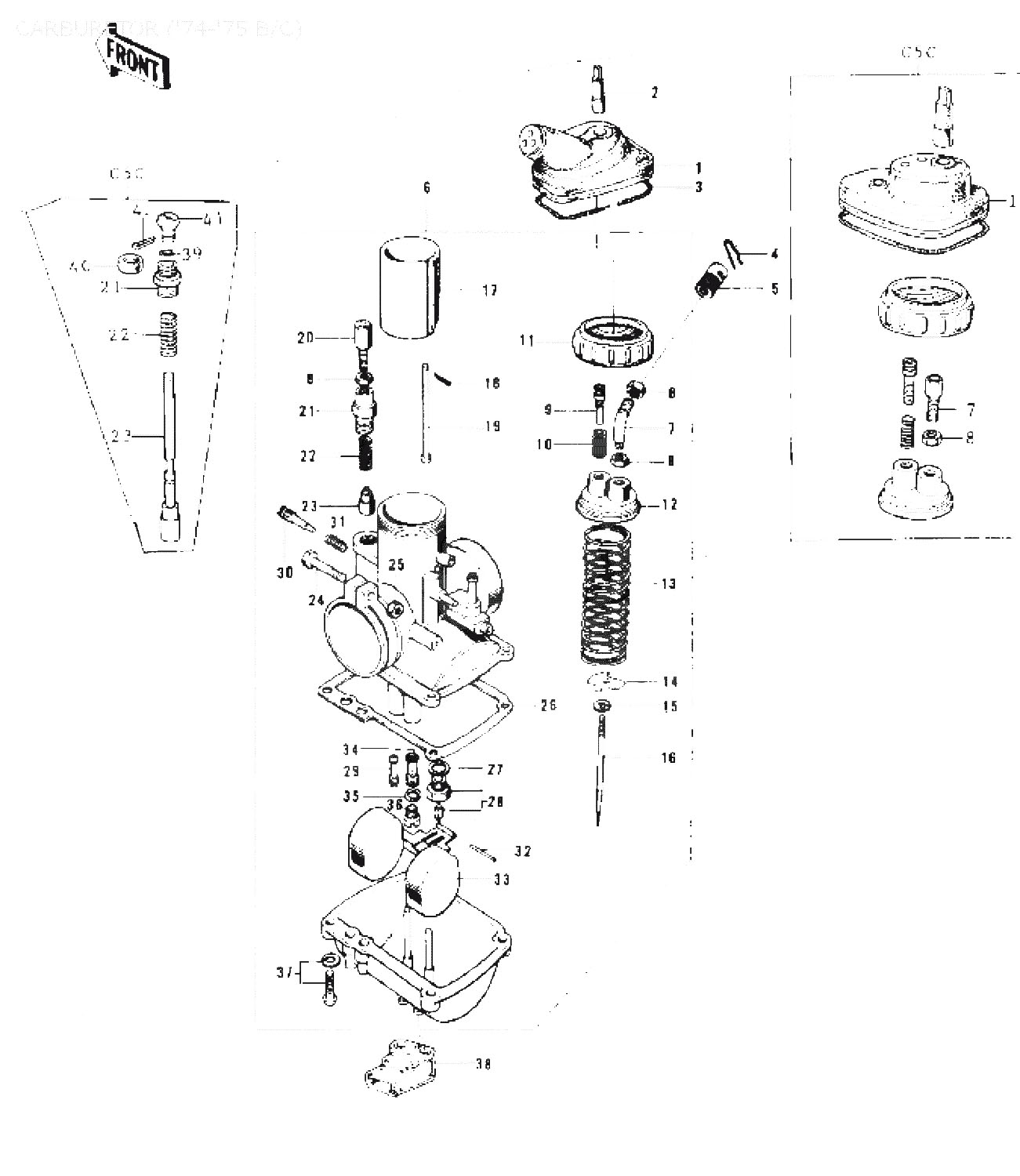

1
14038-033
CAP,CARBURETOR
139:-
1
14038-035
CAP,CARBURETOR
120:-
2
16147-001
PLUG,CARBURETOR CAP
44:-
3
92081-047
SPRING COIL
99:-
4
92036-018
CIRCLIP
39:-
5
16002-007
CABLE ADJUSTER
94:-
6
16001-195
CARBURETOR ASSY
*
6
16001-230
CARBURETOR ASSY,
2771:-
7
16077-001
CABLE GUIDE
92:-
8
16003-004
NUT CABLE ADJUST LOCK, åtgår 3st
*
8
16003-004
NUT CABLE ADJUST LOCK
*
9
16021-002
SCREW,THROTTLE STOP
142:-
10
16022-005
SPRING THR STOP SCREW
70:-
11
16004-010
CAP MIXING CHAMBER
158:-
12
16005-005
TOP MIXING CHAMBER
158:-
13
16006-013
SPRING THROTTLE VALVE
*
14
16007-020
SPRING SEAT,THRTL TL
87:-
15
16008-010
CIRCLIP
*
16
16009-059
JET NEEDLE 4EJ7
315:-
17
16025-057
VALVE,THROTTLE CA2.0
988:-
18
550D1-210
PIN COTTER 1.2X10
*
19
16024-012
ROD,THROTTLE VLV STP
81:-
21
16012-004
CAP STARTER PLUNGER
94:-
21
16012-021
CAP,STARTER PLUNGER
158:-
22
16013-003
SPRING-PLUNGER
54:-
22
16013-010
SPRING,STARTER PLUNGR
58:-
23
16016-002
PLUNGER-ENRICHNER
230:-
23
16016-012
PLUNGER,STARTER
385:-
24
16010-004
SCREW CLAMP
50:-
25
311B0-600
NUT-HEX,6MM
*
26
16019-021
GASKET,FLOAT CHAMBER
153:-
27
16029-002
WASHER VALVE SEAT
39:-
28
16030-001
FLOAT VALVE ASSY
452:-
29
92064-020
PILOT JET #17.5 ISO
156:-
30
16014-002
SCREW PILOT AIR ADJST
142:-
31
16022-007
SPRING-THR STOP SCREW
70:-
31
16022-007
SPRING-THR STOP SCREW
70:-
33
16031-015
FLOAT
452:-
34
16017-068
NEEDLE JET O-Z
444:-
35
16034-001
WASHER MAIN JET
40:-
36
92063-109
MAIN JET NO 75R
130:-
36
92063-108
MAIN JET NO 72.5R
130:-
38
16136-007
GROMMET,OVER FLOW
76:-
39
92037-1077
CIRCLIP
53:-
41
92077-022
KNOB,CARBURETOR
92:-
42
550D1-615
PIN COTTER 1.6X15
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
