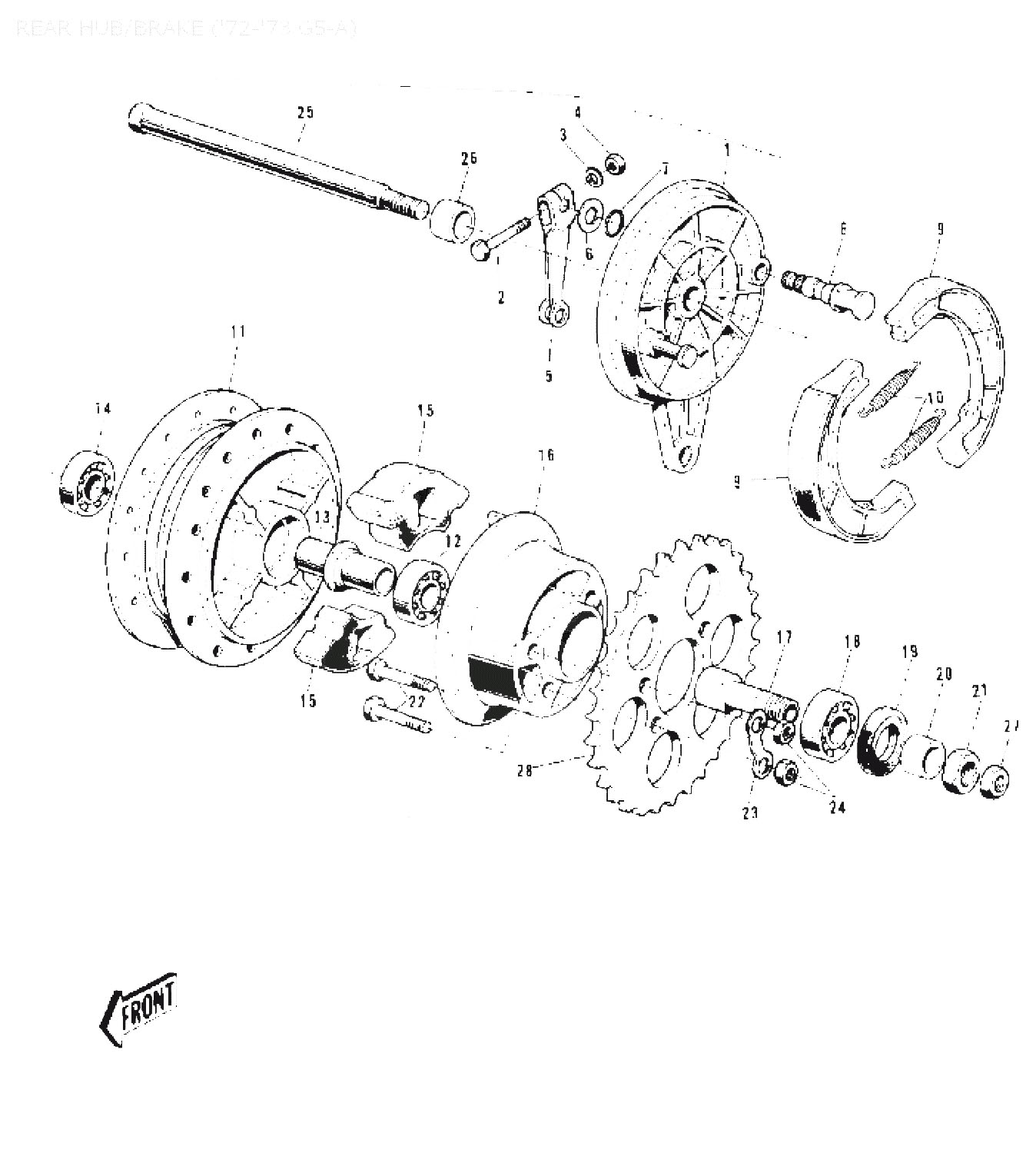

0
42006-0252
PANEL-ASY,RR BRK,BLK
*
2
112G0-630
BOLT-UPSET
*
2
112G0-630
BOLT-UPSET
*
3
410B0-600
WASHER PLAIN 6MM
*
4
311B0-600
NUT-HEX,6MM
*
5
42029-020
LEVER-REAR BRAKE CAM
263:-
6
41052-001
WASHER BRAKE CAM SHT
26:-
7
92055-004
"0" RING,11MM
39:-
8
41050-018
CAM SHAFT-FRONT BRAKE
221:-
9
41048-1085
SHOE-BRAKE, åtgår 2st
151:-
10
92081-1766
SPRING,BRAKE SHOE, åtgår 2st
72:-
0
42005-0318
DRUM ASSY,RR BRK,BUFF
*
12
601B6-201
BEARING BALL #6201
*
13
42010-005
SPACER-RR HUB BEARING
100:-
14
601B6-301Z
BEARING BALL #6301Z
*
15
42014-016
DAMPER REAR HUB SHOCK, åtgår 4st
144:-
0
42033-014
COUPLING ASSY-RR HUB
1210:-
17
42036-013
SLEEVE-RR HUB COUPLNG
342:-
18
601B6-203
BEARING BALL #6203
*
19
92052-003
OIL SEAL-COUPLING
*
20
42037-003
BUSH,COUPLNG OIL SEAL
110:-
21
42045-004
NUT,16MM
65:-
23
92088-011
WASHER LOCK, åtgår 2st
44:-
24
315B1-000
NUT 10MM, åtgår 4st
*
25
41068-1109
AXLE,12X215
361:-
25
41068-1109
AXLE,12X215
361:-
27
42045-005
NUT 10MM
60:-
28
42041-076
REAR SPROCKET 42T
425:-
28
42041-1095
SPROCKET-HUB,40T
430:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
