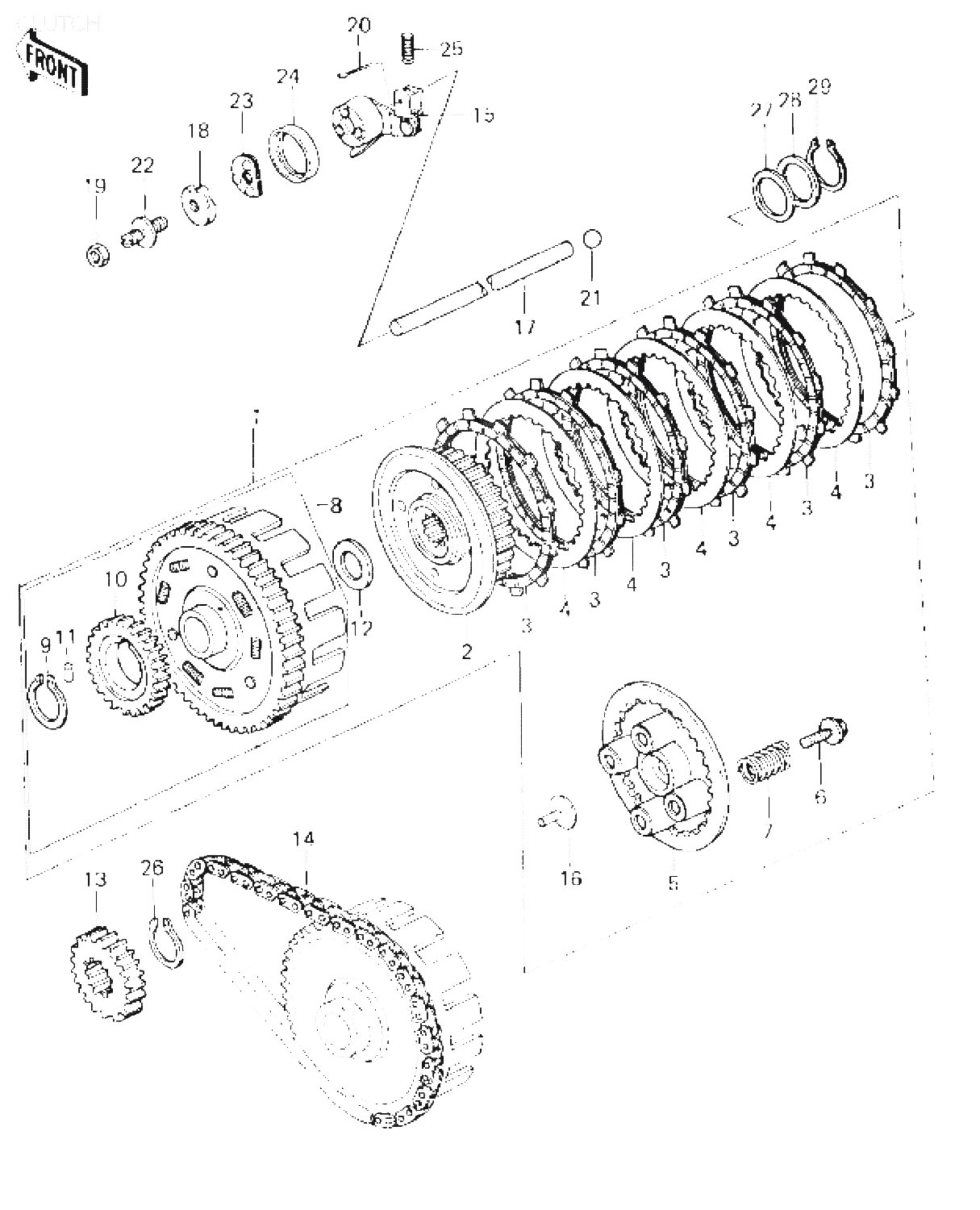

1
13081-1019
CLUTCH-ASSY
5465:-
2
13087-040
HUB,CLUTCH
839:-
3
13088-1001
PLATE,FRICTION, åtgår 6st
*
4
13089-026
PLATE,CLUTCH STEEL, åtgår 5st
92:-
5
13187-1003
PLATE,CLUTCH SPRING
535:-
6
92001-1066
BOLT,CLUTCH SPR FITT, åtgår 4st
55:-
7
92081-1033
SPRING,CLUTCH, åtgår 4st
87:-
8
13095-1008
HOUSING,CLUTCH
3557:-
9
480J3-800
CIRCLIP, 38MM
*
10
59051-1001
GEAR,OIL PUMP,34T
507:-
11
610A0-606
PIN, DOWELL, 6X6
*
12
92022-288
WASHER,CLUTCH THRUST
138:-
13
13121-030
SPROCKET,PRIMARY
609:-
14
13122-005A
CHAIN,PRIMARY DRIVE
*
15
13102-1004
RELEASE, CLUTCH
*
16
13116-029
PUSHER,CLTCH SPRG PLT
247:-
17
13116-1017
ROD,PUSH,CLUTCH
*
18
13119-1003
CAM,RELEASE,CLUTCH
117:-
19
318B0-800
NUT 8MM
*
20
550D1-615
PIN COTTER 1.6X15
*
21
600A1-200
BALL STEEL 3/8'
*
22
92009-1009
SCREW,SLOTTED,8M/M
*
24
92049-1003
OIL SEAL,CLUTCH RELES
99:-
25
92081-1058
SPRING,CLUTCH RETURN
*
26
480J3-000
CIRCLIP,30MM
*
27
92022-225
WASHER-THRUST
50:-
28
92022-302
WASHER,CLUTCH TRUST
*
29
480J2-400
CIRCLIP 24MM
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
