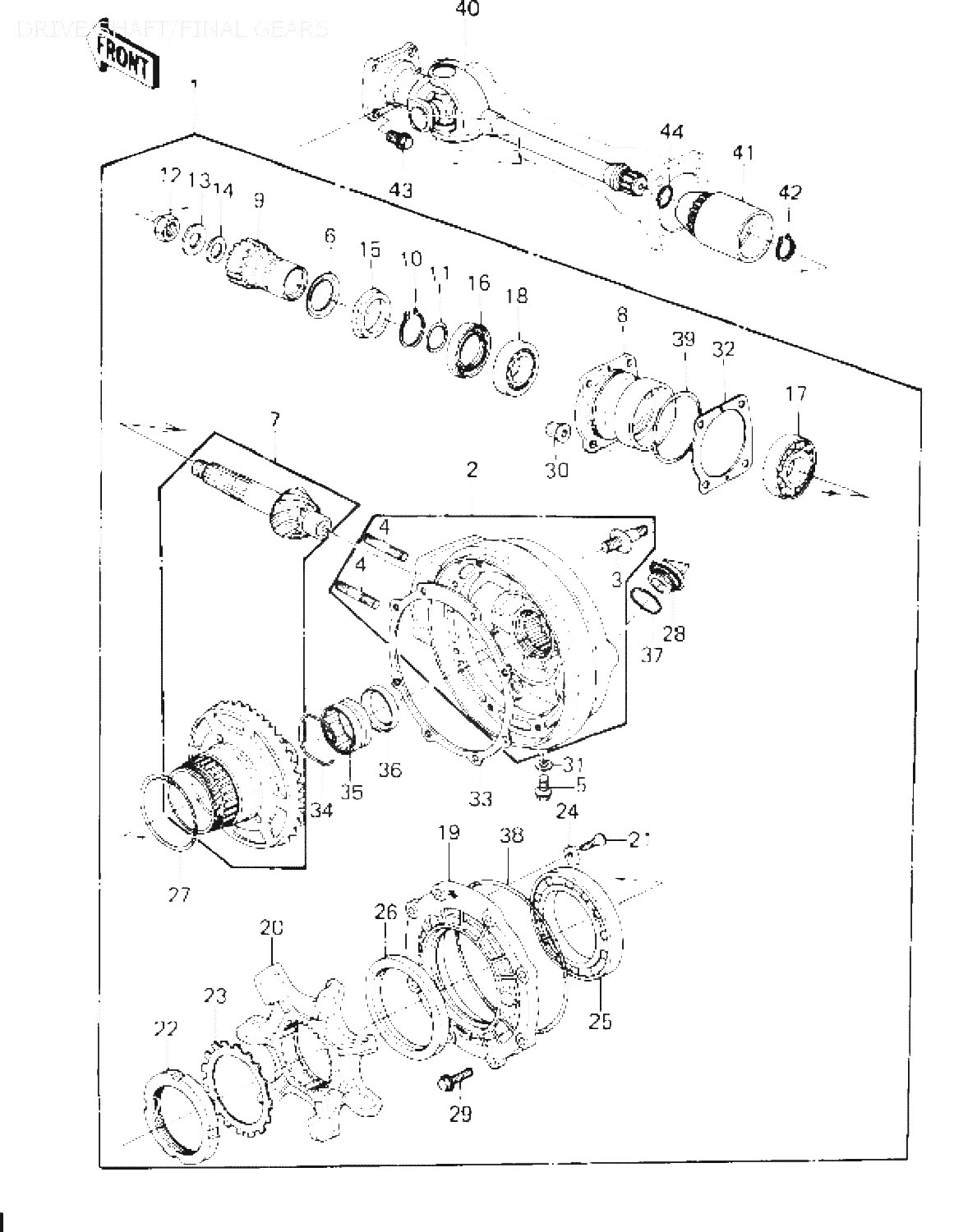

1
13101-1007
GEAR ASSY,FINAL
19695:-
2
11021-1009
CASE ASSY,FINAL GEAR
14009:-
3
92004-1020
STUD
231:-
4
92004-1021
STUD,10X31.5, åtgår 4st
55:-
5
130B0-812
BOLT,FLANGE
*
6
13169-1129
PLATE,OIL SEAL GUIDE
55:-
7
13101-5026
GEAR SET,FINAL BEVEL
17373:-
8
41046-1008
HOUSING,BEARING,FINAL
2288:-
9
42034-1008
COUPLING PINION SHAFT
1804:-
10
480J3-600
CIRCLIP,36M/M
*
11
671B2-525
"0" RING,25MM
*
12
92015-1059
NUT,16M/M
91:-
13
92022-1105
WASHER
91:-
14
92025-1027
SHIM
77:-
14
92025-1028
SHIM
83:-
14
92025-1030
SHIM
83:-
14
92025-1031
SHIM
83:-
14
92025-1032
SHIM
58:-
14
92025-1033
SHIM
46:-
14
92025-1034
SHIM
41:-
14
92025-1036
SHIM
58:-
15
92049-1023
OIL SEAL,OS-50369HS
118:-
16
92049-1024
OIL SEAL,SC35558
176:-
17
92116-1002
BEARING,R,4T30305C
536:-
18
92116-1003
BEARING
487:-
19
14025-1066
COVER,FINAL GEAR CASE
1313:-
20
42034-1007
COUPLING,REAR HUB
2912:-
21
92009-1041
SCREW,COUNTERSNK,6X16, åtgår 3st
39:-
22
92015-1060
NUT,75M/M,RING GEAR
333:-
23
92022-1106
WASHER,75M/M,RING GER
96:-
24
92022-1112
WASHER,BEARING STOPPR, åtgår 3st
46:-
25
92045-1020
BEARING,BALL,16016
1835:-
26
92049-1026
OIL SEAL,S-901159HS
316:-
27
92055-1031
"0" RING,75MM
90:-
28
16115-1003
CAP
96:-
29
92001-1095
BOLT,8X28, åtgår 8st
58:-
30
92015-1415
NUT,10MM, åtgår 4st
44:-
31
92022-1086
WASHER
39:-
32
92025-1037
SHIM,73X0.6
113:-
32
92025-1038
SHIM,73X0.9
139:-
32
92025-1039
SHIM,73X1.2
177:-
32
92025-1040
SHIM,73X0.1
92:-
32
92025-1041
SHIM,73X0.15
92:-
32
92025-1042
SHIM,73X0.2
91:-
32
92025-1043
SHIM,73X0.3
92:-
33
92025-1045
SHIM,168X0.6
165:-
33
92025-1046
SHIM,168X0.9
142:-
33
92025-1047
SHIM,168X1.2
114:-
33
92025-1048
SHIM,168X0.1
165:-
33
92025-1049
SHIM,168X0.15
165:-
33
92025-1051
SHIM,168X0.3
165:-
34
92033-1020
RING,SNAP
45:-
35
92046-1020
BEARING
1182:-
36
92049-1025
OIL SEAL
129:-
37
92055-049
"0" RING,31MM
39:-
38
92055-1030
"0" RING,159MM
86:-
39
92055-1032
"0" RING,67MM
UTGÅTT
40
39158-1001
SHAFT ASSY,PROPELLER
4383:-
41
42034-1009
COUPLING,PROP SHAFT
1850:-
42
480J2-000
CIRCLIP, 20MM
*
43
92001-1139
BOLT,12X15,COUPLING, åtgår 4st
UTGÅTT
44
92055-1029
"0" RING,20.5MM
UTGÅTT
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
