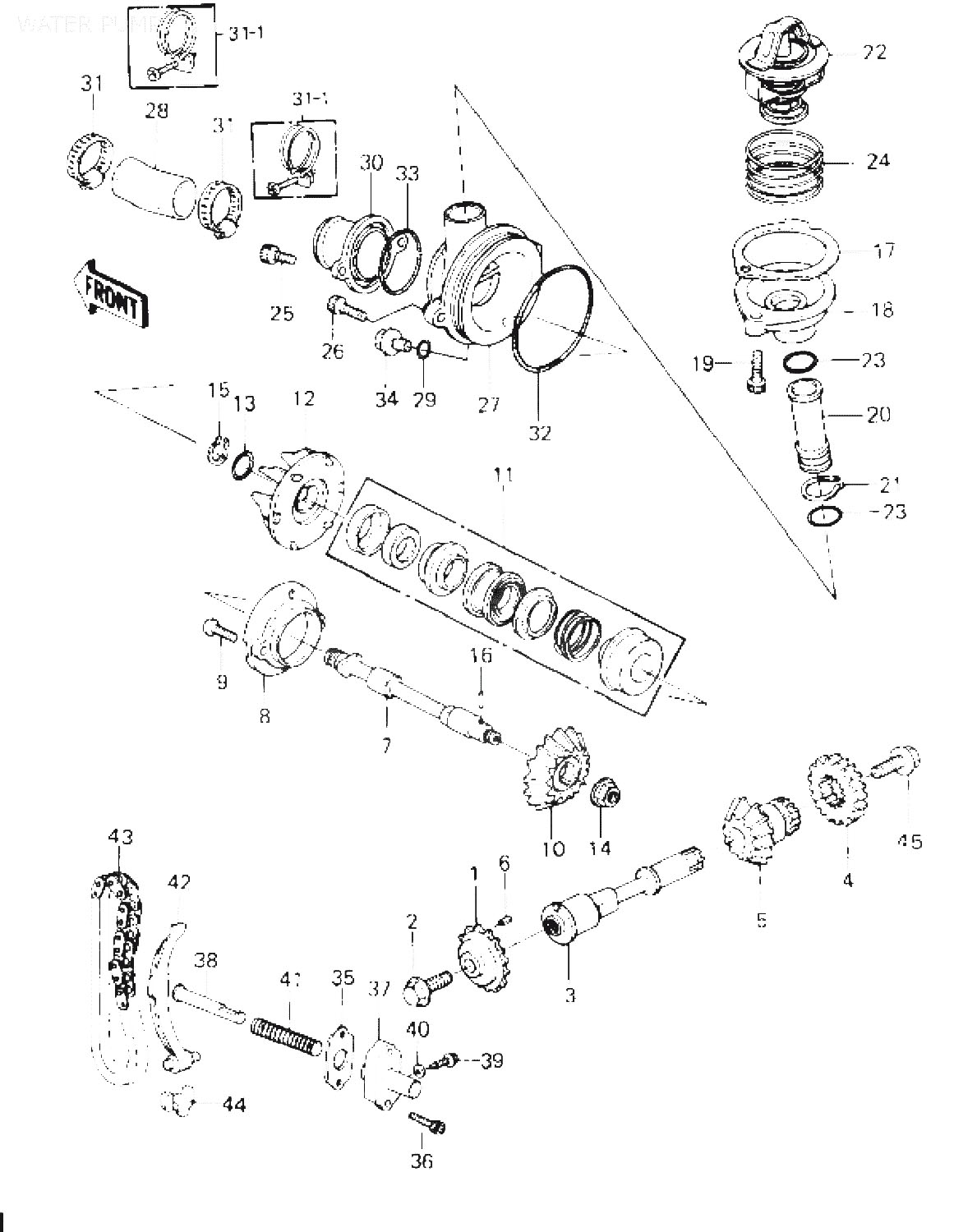

1
12046-1015
SPROCKET,TIMING CHAIN
699:-
2
130G0-820
BOLT,FLANGED,8X20
*
3
13107-1009
SHAFT,WATER PUMP DRIV
979:-
4
13216-1010
GEAR,21T,TIMING
362:-
5
49022-1005
GEAR,BEVEL,WATER PUMP
*
5
49022-1015
GEAR-BEVEL,WATER PUMP
*
6
555A0-408
PIN-SPRING,4X8
*
7
13107-1011
SHAFT,WATER PUMP
*
8
14020-1004
RETAINER,MECHA SEAL
223:-
9
220R0-516
SCREW-PAN-CROS, åtgår 2st
*
10
49022-1006
GEAR,BEVEL,WATER PUMP
*
11
49063-1001
SEAL,MECHANICAL
*
12
59256-1001
IMPELLER,WATER PUMP
*
13
670B1-508
"O" RING,8MM
*
14
92015-1014
NUT,8M/M
15:-
15
92033-1024
CIRCLIP,11M/M,IMPELER
41:-
16
92042-014
PIN GEAR CHANGE DRUM
13:-
17
11009-1087
GASKET,THERMOSTAT CAP
UTGÅTT
18
11012-1054
CAP,THERMOSTAT
261:-
19
120P0-625
BOLT-SOCKET,6X25, åtgår 2st
*
20
32032-1184
PIPE,WATER BYPASS
250:-
21
480J2-000
CIRCLIP, 20MM
*
22
49054-1001
THERMOSTAT
520:-
23
670B2-016
"0" RING,16MM, åtgår 2st
*
24
92081-1104
SPRING,THERMOSTAT
137:-
25
120P0-616
BOLT,SOCKET,6X16, åtgår 2st
*
26
120P0-620
BOLT-SOCKET,6X20, åtgår 2st
*
27
14025-1077
COVER,WATER PUMP
640:-
28
39062-1020
HOSE-COOLING
153:-
29
670B1-508
"O" RING,8MM
*
30
92005-1011
FITTING,SUCTION
UTGÅTT
31
92037-1177
CLAMP,HOSE, åtgår 2st
86:-
31
92037-1177
CLAMP,HOSE, åtgår 2st
86:-
32
92055-1032
"0" RING,67MM
UTGÅTT
33
92055-1033
"0" RING,0R2037
UTGÅTT
34
92066-1026
PLUG,DRAIN,8X10
77:-
35
11009-1099
GASKET,TIMING TENSONR
40:-
36
120P0-625
BOLT-SOCKET,6X25, åtgår 2st
*
37
12049-1007
TENSIONER,TIMING CHAN
368:-
38
13116-1014
ROD,PUSH,TENSIONER
143:-
39
92001-1155
BOLT,TENSIONER ADJUST
46:-
40
92022-077
WASHER OIL PUMP BANJO
15:-
41
92081-1102
SPRING,TENSIONER
UTGÅTT
42
12053-1027
GUIDE,CHAIN,TIMING
*
43
92057-1019
CHAIN,TIMING,72L
UTGÅTT
44
92075-1187
DAMPER,TIMING CHAIN
*
45
130G0-820
BOLT,FLANGED,8X20
*
45
92001-1371
BOLT,FLANGED,8X17
72:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
