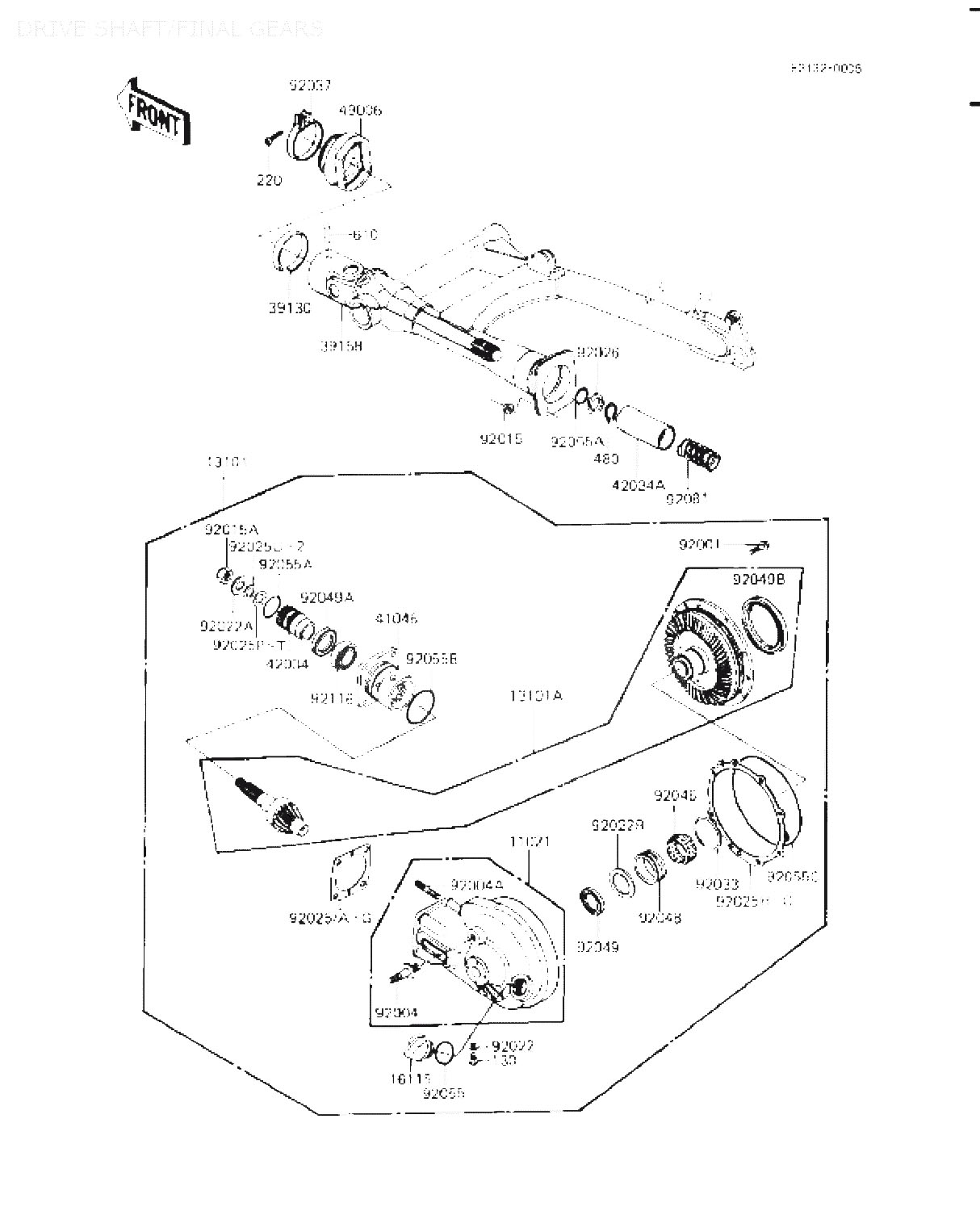

Kawasaki » Z1100 (1983 KZ1100-A3 Shaft) » DRIVE SHAFT/FINAL GEARS

11021
11021-1014
CASE-ASSY,FINAL GEAR,
10065:-
13101
13101-1016
GEAR-ASSY,FINAL,HS SI
12908:-
13101
13101-5032
GEAR-ASSY,REAR BEVEL
12908:-
16115
16115-1003
CAP
96:-
39130
39130-1002
SPRING,LEAF
44:-
39158
39158-1061
SHAFT-ASSY-DRIVE
4352:-
41046
41046-1012
HOUSING-BEARING
3014:-
42034
42034-1023
Denna artikel ersätts av 42034-1178
42034
42034-1092
Denna artikel ersätts av 42034-1178
49006
49006-1059
BOOT,PROPELLER SHAFT
280:-
92001
92001-1095
BOLT,8X28, åtgår 8st
58:-
92004
92004-1020
STUD
68:-
92004
92004-1024
STUD,10X30, åtgår 4st
68:-
92015
92015-1415
NUT,10MM, åtgår 4st
91:-
92015
92015-1059
NUT,16M/M
91:-
92022
92022-1086
WASHER
77:-
92022
92022-1105
WASHER
77:-
92022
92022-1237
WASHER,40X52.5X1.4
77:-
92025
92025-1052
SHIM,0.15T
77:-
92025
92025-1053
SHIM,0.50T
77:-
92025
92025-1054
SHIM,0.60T
77:-
92025
92025-1055
SHIM,0.70T
77:-
92025
92025-1056
SHIM,0.80T
77:-
92025
92025-1057
SHIM,0.90T
77:-
92025
92025-1058
SHIM,1.00T
77:-
92025
92025-1059
SHIM,1.20T
77:-
92025
92025-1060
SHIM,0.15T
77:-
92025
92025-1061
SHIM,0.50T
77:-
92025
92025-1062
SHIM,0.60T
77:-
92025
92025-1063
SHIM,0.70T
77:-
92025
92025-1064
SHIM,0.80T
77:-
92025
92025-1065
SHIM,0.10T
77:-
92025
92025-1066
SHIM,1.00T
77:-
92025
92025-1067
SHIM,1.20T
77:-
92025
92025-1214
SHIM,T=1.30
77:-
92025
92025-1215
SHIM,T=1.32
77:-
92025
92025-1216
SHIM,T=1.34
77:-
92025
92025-1217
SHIM,T=1.36
77:-
92025
92025-1218
SHIM,T=1.38
77:-
92025
92025-1219
SHIM,T=0.10
77:-
92025
92025-1220
SHIM,T=0.20
77:-
92025
92025-1221
SHIM,T=0.30
77:-
92025
92025-1222
SHIM,T=0.50
77:-
92025
92025-1223
SHIM,T=0.60
77:-
92025
92025-1224
SHIM,T=0.70
77:-
920250
92025-1225
SHIM,T=0.80
77:-
920251
92025-1226
SHIM,T=0.90
77:-
920252
92025-1227
SHIM,T=1.00
77:-
92026
92026-1085
SPACER,PROPELLER SHAF
60:-
92033
92033-1020
RING,SNAP
45:-
92037
92037-1112
CLAMP,BOOT FITTING
130:-
92046
92046-1037
BRG,NDL,KT384620EG-B2
668:-
92048
92048-1017
RACE,ORT465321E01
394:-
92049
92049-1025
OIL SEAL
322:-
92049
92049-1033
OIL SEAL,SC32487
322:-
92049
92049-1034
OIL SEAL,S-831009HS
322:-
92055
92055-049
"0" RING,31MM
120:-
92055
92055-1037
"0" RING,I.D=32.7MM, åtgår 2st
120:-
92055
92055-1038
"0" RING,I.D=57.6MM
120:-
92055
92055-1039
"0" RING,I.D=150.4MM
120:-
92081
92081-1183
SPRING,PROPELLER SHAF
58:-
92116
92116-1004
BRG,ROLLER,4T-32005
581:-
130
130B0-812
BOLT,FLANGE
130:-
220
220B0-430
SCREW-PAN-CROS
*
480
480J2-600
CIRCLIP 26MM
*
610
610A0-406
PIN-DOWEL,4X6
*



* Kontakta kundtjänst för prisuppgift: 018-15 60 00
