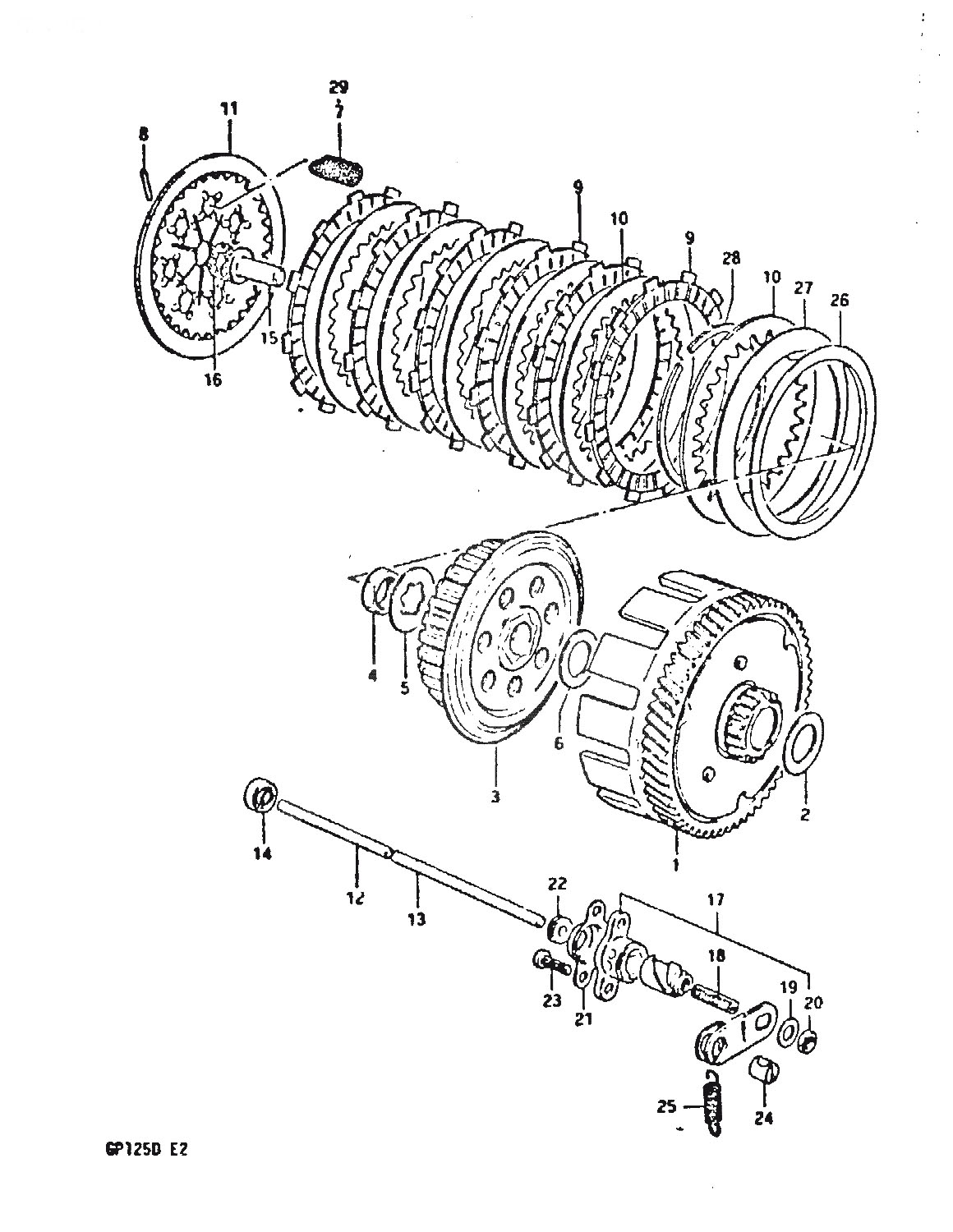

1
21200-39101
GEAR ASSY, PRIMARY DRIVEN
*
2
08211-20323
WASHER
50:-
3
21410-28700
HUB, SLEEVE
*
3
21410-48000
HUB, SLEEVE
*
5
09167-17002
CLUTCH SLEEVE HUB WASHER
30:-
6
08211-17282
WASHER (M12MARK2,M15D,M12 OD=29=17(0.67) T=1.5(0.06))
35:-
7
09443-12010
SPRING, åtgår 7st
35:-
8
09261-02001
PIN, åtgår 7st
25:-
10
21451-36200
PLATE, DRIVEN (T:2)
100:-
11
21460-28000
PLATE, CLUTCH PRESSURE
355:-
15
23121-39101
PIECE, CLUTCH PUSH
185:-
16
09263-10002
THRUST BEARING (10.1X22X2.8)
195:-
17
23200-39102
SCREW ASSY, RELEASE
565:-
19
09160-06019
WASHER
25:-
20
08310-22068
NUT
35:-
21
23241-23000
COVER, RELEASE SCREW
160:-
22
09281-05001
DUST SEAL
30:-
24
23222-07000
SPRING
75:-
25
09443-08001
SPRING
30:-
26
21471-36200
SEAT, WAVE WASHER
205:-
27
09164-98001
WAVE WASHER
230:-
28
09381-91001
SNAP RING
*
29
09443-12018
SPRING, åtgår 7st
45:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
