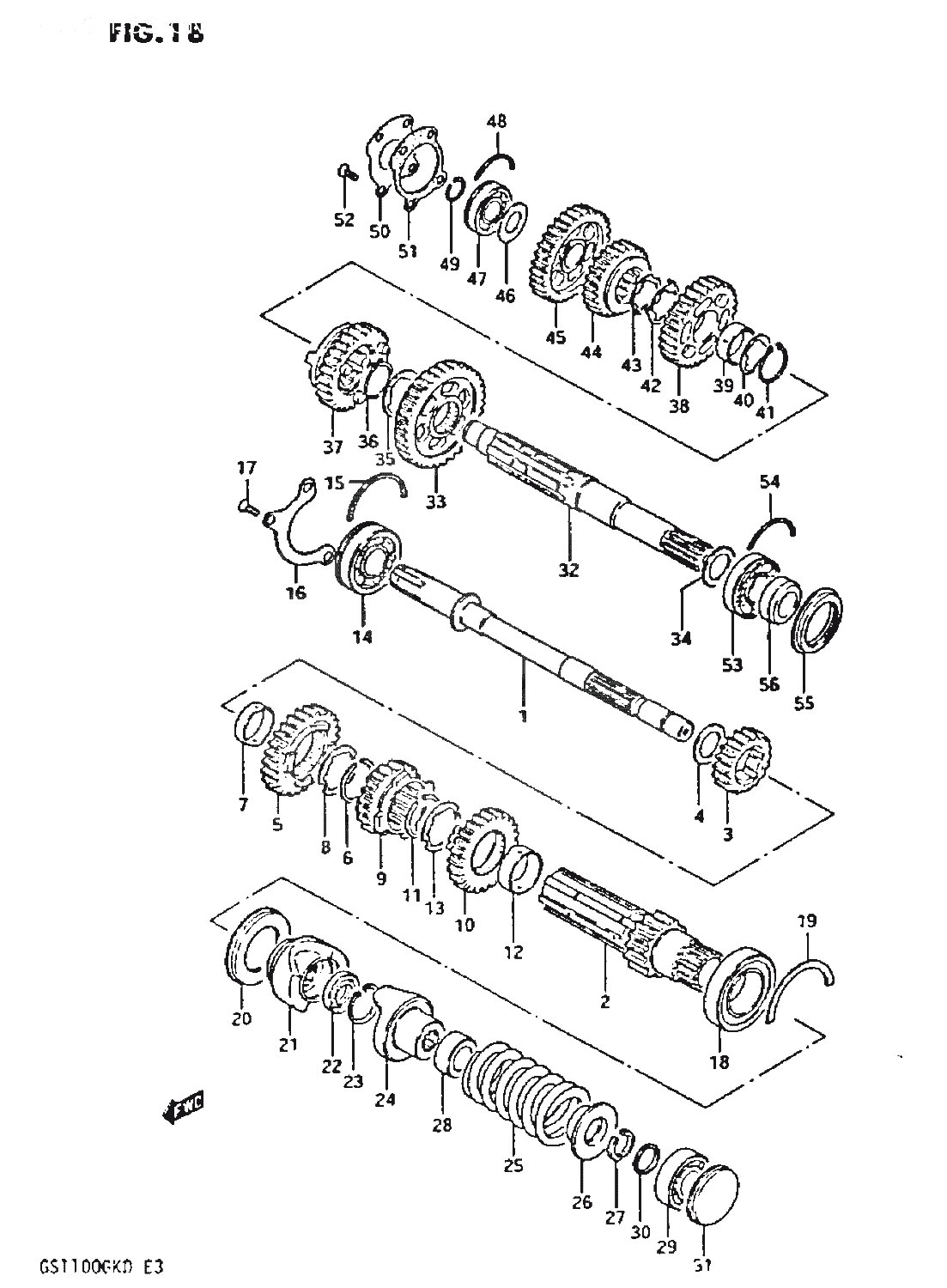

1
24121-45103
COUNTERSHAFT, INNER
*
2
24141-45102
COUNTERSHAFT, OUTER
*
3
24221-45110
GEAR 2ND DRIVE (NT:18)
*
4
09160-21010
WASHER
*
5
24250-45102
GEAR, 5TH DRIVE (NT:26)
2550:-
6
09380-32002
RING
60:-
7
24242-45100
SPACER
390:-
8
24243-45101
LOCK WASHER
105:-
9
24231-45104
GEAR, 3RD DRIVE (NT:21)
*
10
24240-45100
GEAR, 4TH DRIVE (NT:24)
*
11
09380-32002
RING
60:-
12
24242-45100
SPACER
390:-
13
24243-45101
LOCK WASHER
105:-
14
09262-25051
BEARING, RH
1160:-
16
24741-45000
HOLDER, BEARING
130:-
17
02122-06167
SCREW, åtgår 3st
25:-
18
09262-32003
BEARING, MIDDLE
*
19
09390-52004
O RING
*
20
09283-40005
OIL SEAL
345:-
21
22521-45101
DOG, OUTPUT CAM
*
22
09283-20032
OIL SEAL
190:-
23
08331-41326
CIRCLIP
30:-
24
22511-45102
DOG, INPUT CAM
*
25
09440-35002
SPRING
*
26
22531-45101
SLIDING STOPPER
*
27
22541-45100
STOPPER, åtgår 2st
*
28
22551-45101
GUIDE, SPRING
*
29
09262-17023
BEARING, CRANKSHAFT LOWER
345:-
30
09180-17052
SPACER
*
31
09241-40003
PLUG
*
32
24131-49100
DRIVESHAFT
*
33
24310-45100
GEAR, LST DRIVE (NT:35)
*
34
08211-25383
WASHER, LH
*
35
09167-28001
WASHER (28.1X38X1.0)
60:-
37
24341-45100
GEAR, 4TH DRIVEN (NT:27)
2440:-
38
24331-49202
GEAR 3RD DRIVEN
2370:-
39
24332-49000
BUSH, 2ND DRIVEN GEAR
230:-
40
09167-28001
WASHER (28.1X38X1.0)
60:-
42
09169-28001
LOCK WASHER, RH
50:-
43
09167-28002
LOCK WASHER, LH
60:-
44
24351-45110
GEAR, 5TH DRIVEN (NT:24)
*
45
24320-45110
GEAR COMP 2ND DRIVEN (NT:31)
*
46
08211-20341
WASHER, RH
40:-
47
09262-20049
BEARING, RH
690:-
48
09390-47003
C RING
35:-
49
09380-20007
CIRCLIP, ENGINE SPROCKET
40:-
50
24761-45100
PLATE, DRIVESHAFT
*
52
02122-06167
SCREW, åtgår 4st
25:-
54
09390-52002
C RING
*
55
09283-35015
SEAL, COUNTER SHAFT LH
255:-
56
24136-45100
SPACER
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
