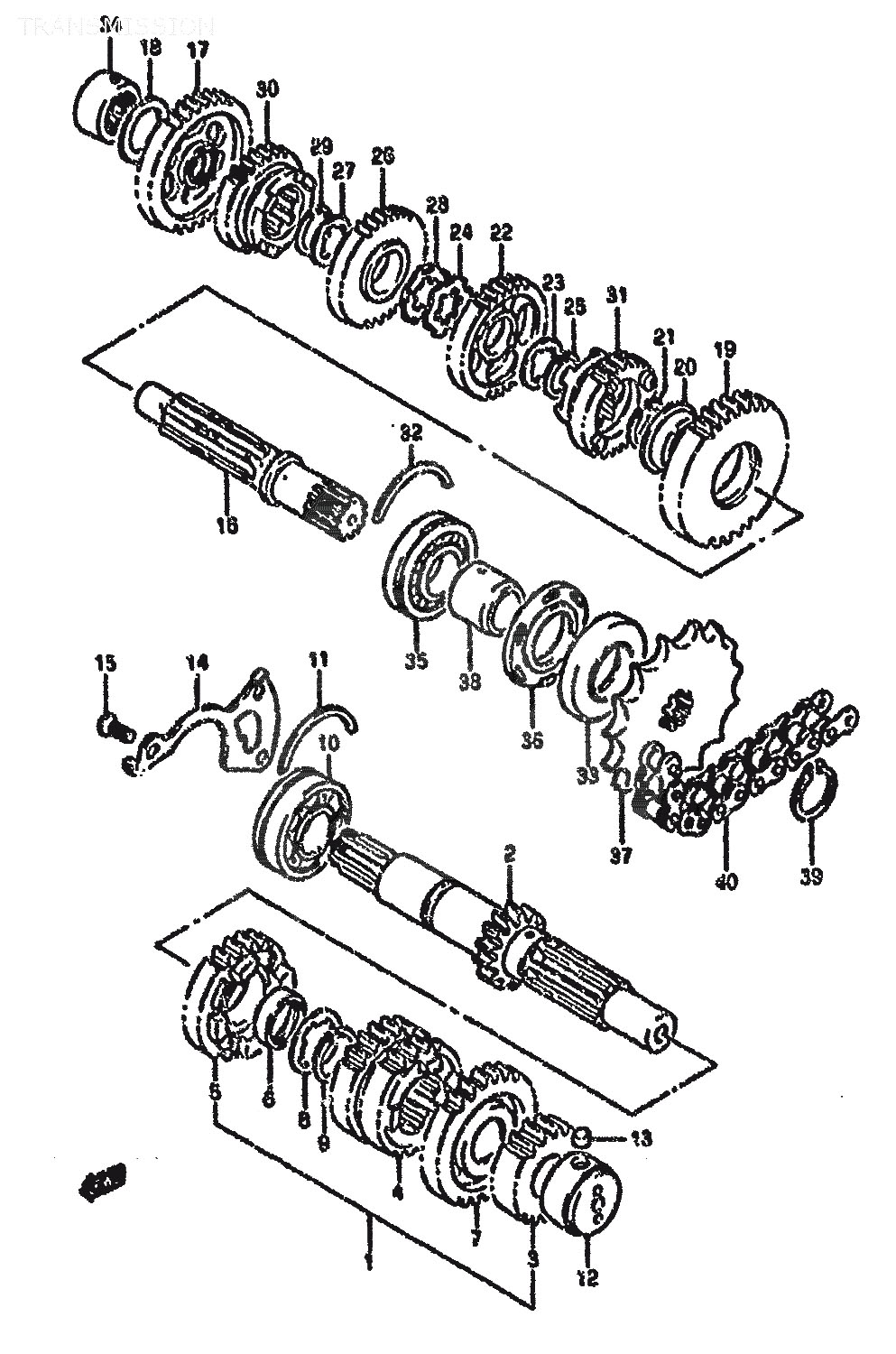

1
24120-01D00
COUNTERSHAFT ASSY
*
2
24121-01D00
COUNTERSHAFT (NT:13)
*
3
24221-44001
GEAR, 2ND DRIVE (NT:18)
1395:-
4
24231-01D00
GEAR, 3/4 DRIVE (NT:21/24)
*
7
24260-01D00
GEAR, 6TH DRIVE (NT:27)
*
9
09380-25010
CIRCLIP
45:-
10
09262-25105
BEARING, LH (25X62X17)
1140:-
11
09390-62012
C RING, CNTR SHAFT BRG RH
115:-
12
09263-20026
BEARING, LH
*
13
04221-07129
PIN
30:-
14
24741-44102
HOLDER, BEARING
195:-
15
02122-06163
SCREW, åtgår 3st
20:-
16
24131-01D00
DRIVESHAFT
3190:-
17
24310-44000
GEAR, 1ST DRIVEN (NT:32)
*
18
08211-20341
WASHER, RH
40:-
21
09380-25010
CIRCLIP
45:-
23
09167-25012
WASHER
50:-
24
09167-25013
LOCK WASHER, 3RD DRIVEN
45:-
25
09380-25010
CIRCLIP
45:-
27
09167-25012
WASHER
50:-
28
09169-25001
WASHER, 3RD DRIVEN LOCK
35:-
29
09380-25010
CIRCLIP
45:-
30
24351-44001
GEAR, 5TH DRIVEN (NT:25)
1480:-
31
24361-44002
GEAR, 6TH DRIVEN (NT:23)
*
32
09390-62012
C RING, CNTR SHAFT BRG RH
115:-
33
09283-32015
OIL SEAL (32X62X7)
250:-
34
09263-20028
BEARING, RH
*
35
09262-25105
BEARING, LH (25X62X17)
1140:-
36
09282-32002
OIL SEAL
185:-
37
27511-01D01
SPROCKET, ENGINE (NT:16)
235:-
38
27531-01D00
SPACER (L:35.6)
*
38
27531-01D10
SPACER (L:32.7)
*
40
27600-01C10-110
CHAIN, DRIVE (DID520V6X110LE)
2470:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
