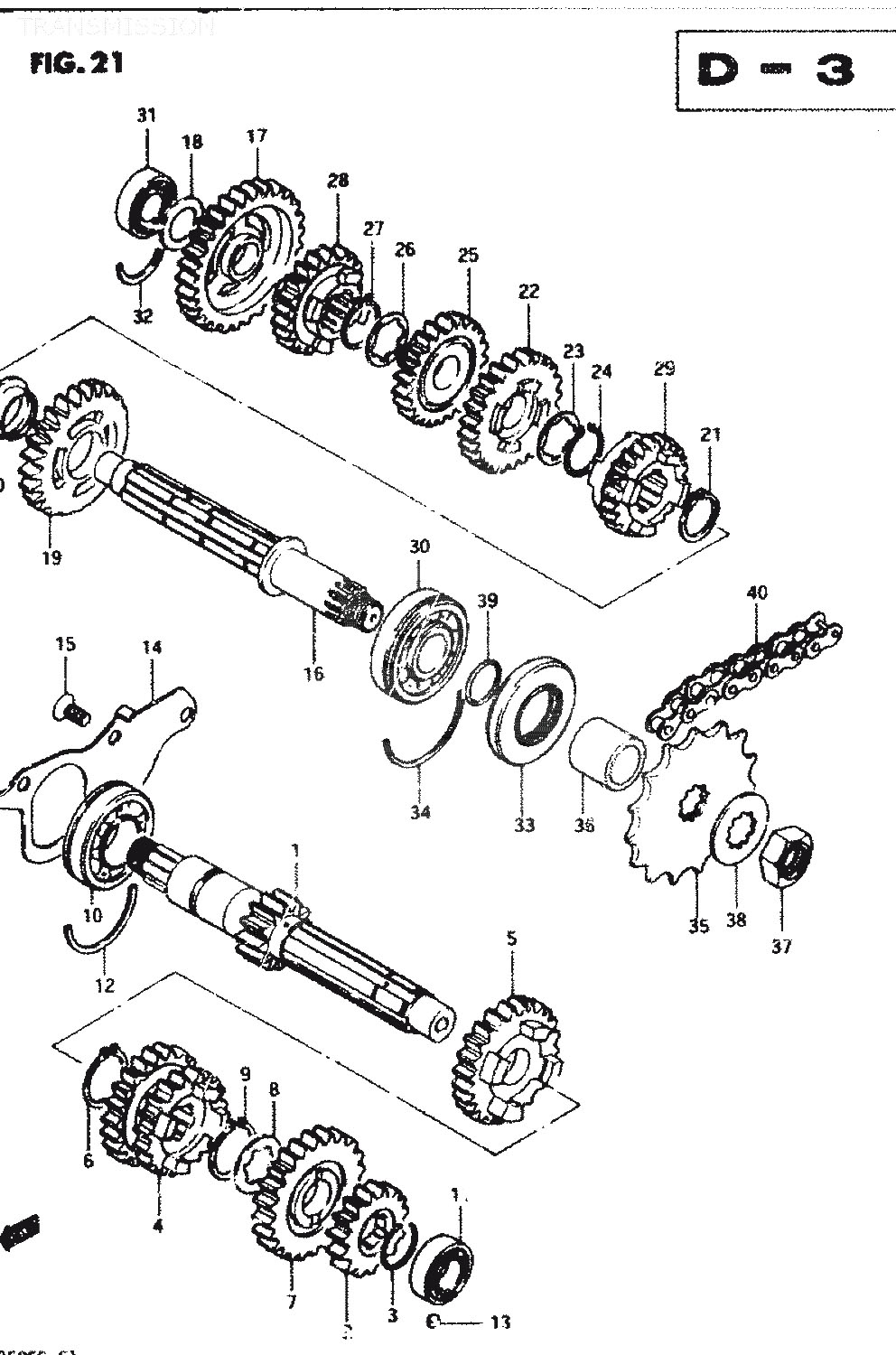

1
24121-11402
COUNTERSHAFT (NT:12)
*
2
24221-11300
GEAR, 2ND DRIVE (NT:16)
*
4
24231-11300
GEAR, 3/4 DRIVE (NT:19/21)
*
5
24251-11300
GEAR, 5TH DRIVE (NT:22)
*
7
24261-11300
GEAR, 6TH DRIVE (NT:23)
*
8
09167-22011
WASHER (22.1X27X0.5)
50:-
10
08160-62050
BEARING, RH
460:-
11
09263-17015
BEARING, LH
*
12
09390-52002
C RING
*
13
04221-07129
PIN
30:-
14
24741-11400
HOLDER, BEARING
*
16
24131-11500
DRIVESHAFT
*
17
24310-11300
GEAR, 1ST DRIVEN (NT:30)
*
19
24321-11400
GEAR, 2ND DRIVEN (NT:26)
*
20
09301-22002
BUSH
165:-
22
24331-11400
GEAR, 3RD DRIVEN (NT:23)
*
23
09167-22011
WASHER (22.1X27X0.5)
50:-
25
24341-11300
GEAR, 4TH DRIVEN (NT:21)
*
26
09167-22011
WASHER (22.1X27X0.5)
50:-
28
24351-11300
GEAR, 5TH DRIVEN (NT:19)
*
29
24361-11300
GEAR, 6TH DRIVEN (NT:18)
*
30
08160-63040
BEARING, LH
495:-
32
09390-35001
RING
*
33
09283-28012
OIL SEAL
*
34
09390-52002
C RING
*
35
27511-11400
SPROCKET, ENGINE (NT:14)
450:-
36
09180-20083
SPACER (20X28X21.6)
*
37
09159-16006
NUT
*
38
09167-20018
LOCK WASHER
45:-
39
09280-20001
O RING, CNTR SHAFT
25:-
40
27600-11531
CHAIN, DRIVE (520X11OLE)
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
