0
13220-38E10

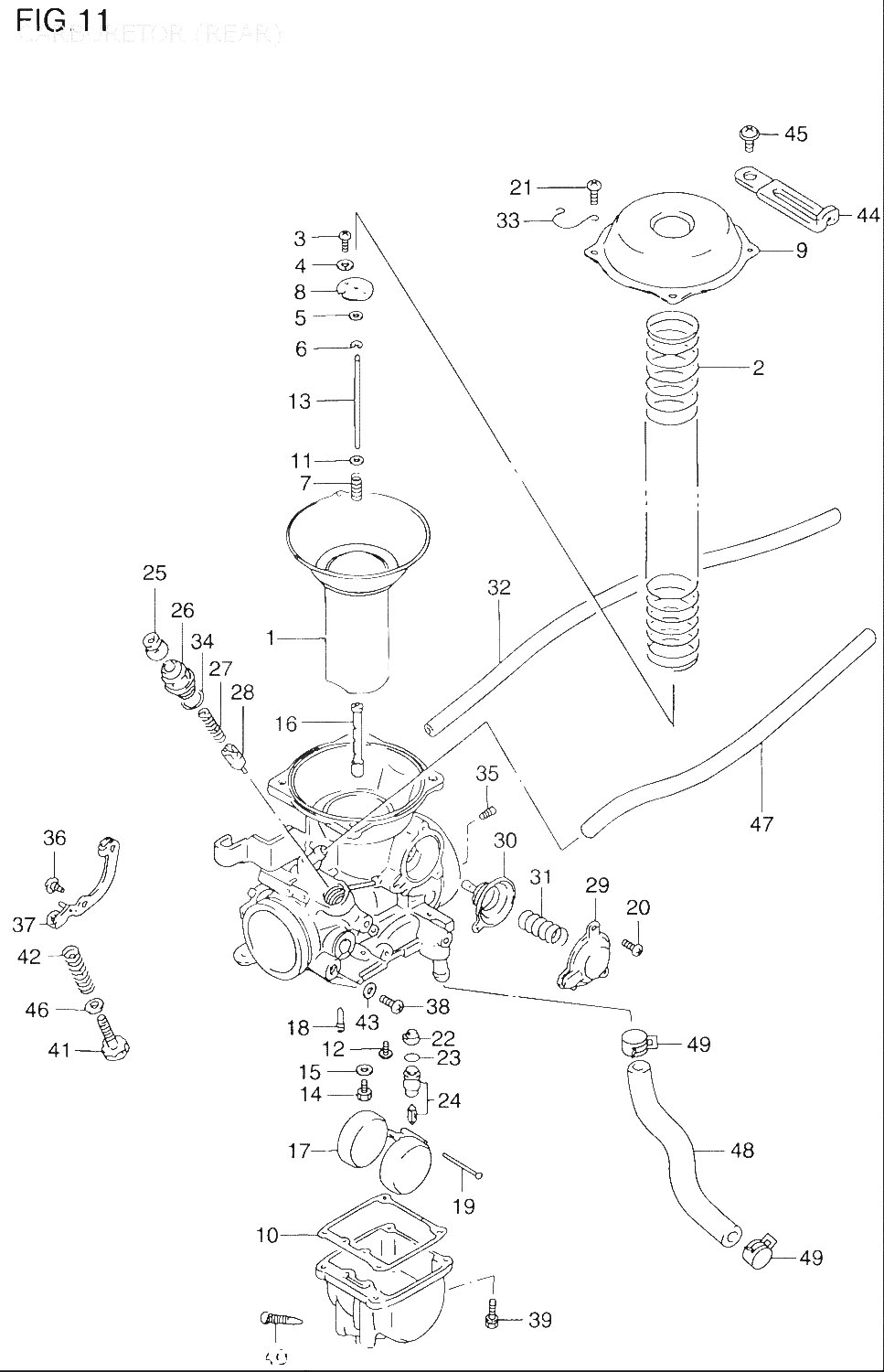

CARBURETOR ASSY, REAR
14040:-
0
13220-38E51
CARBURETOR ASSY, REAR
*
1
13500-38A10
DIAPHRAGM ASSY
2900:-
2
13503-38B00
SPRING
170:-
4
08321-21033
LOCK WASHER, åtgår 2st
20:-
5
13387-47010
RING
80:-
6
13394-10010
CLIP, NEEDLE
65:-
7
13388-44030
SPRING
110:-
8
13389-37400
PLATE
95:-
9
13502-45CE0
COVER
525:-
10
13251-38A10
GASKET
125:-
11
13382-44030
WASHER
60:-
12
09492-45016
JET, PILOT (45)
150:-
13
13383-38B00
NEEDLE, JET (5D35-1)
245:-
14
09491-26012
JET, MAIN (132.5)
155:-
15
13382-03110
WASHER
30:-
16
09494-00893
JET, NEEDLE (P-7M)
*
17
13252-23010
FLOAT
330:-
18
13602-05A10
SCREW
40:-
19
13254-92311
PIN, FLOAT
35:-
20
02112-04107
SCREW, åtgår 3st
25:-
22
13376-19F00
FILTER
110:-
23
13374-35C00
O RING
120:-
24
13370-39A00
VALVE ASSY, NEEDLE
980:-
26
13418-43410
HOLDER, GUIDE
120:-
27
13417-22010
SPRING
60:-
28
13411-01400
PLUNGER ASSY
220:-
29
13484-38A10
COVER
295:-
30
13480-05A10
DIAPHRAGM ASSY
1190:-
31
13481-45C10
SPRING
75:-
33
13692-02500
CLIP
110:-
35
09492-65005
JET, PILOT AIR (65)
155:-
36
13602-05A30
SCREW
60:-
37
13554-45C20
LEVER ASSY
530:-
38
02112-05063
SCREW
*
39
13601-04148
SCREW, åtgår 4st
30:-
40
13247-02340
SCREW, DRAIN
55:-
41
13267-39E50
ADJUSTER
185:-
42
13271-93011
SPRING
*
43
13523-46110
WASHER
30:-
46
13277-37100
WASHER
25:-
49
09401-11415
CLIP, åtgår 2st
35:-
51
13291-29900
WASHER
20:-
53
13279-47070
SCREW, PILOT (1,1/2)
220:-
54
13281-05A00
PLUG
50:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
