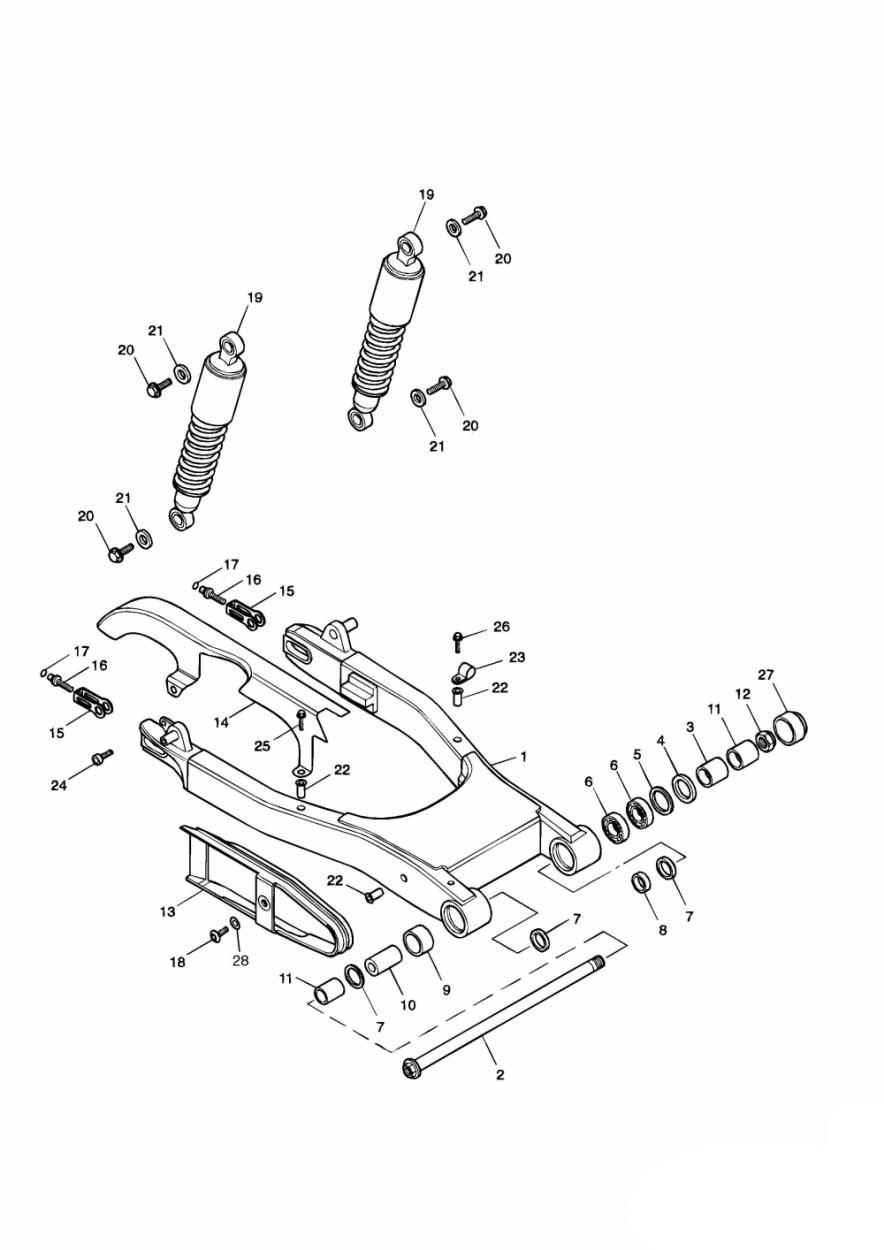

1
T2059600
Swinging arm assembly
Inc bearings etc, items 4,5,6,7,9 & 22
22515:-
2
T2059590
Spindle, Bolt, Swinging Arm
2340:-
3
T2059591
Spacer, Outrigger, Inner
235:-
4
T3600044
Oil Seal, 35 25 4
170:-
5
T3500204
Circlip, Int, 35 x 1.5
20:-
6
T3800081
Bearing, Ball, 17 35 10, åtgår 2st
315:-
7
T3600170
Seal, SD 25 32 04
205:-
8
T2054063
Spacer, 25 x 17 x 8.5
130:-
9
T3800014
Roller bearing
235:-
10
T2054344
Sleeve, Ground, 25 x 17 x 37
225:-
11
T2059592
Spacer, Outrigger, Outer, åtgår 2st
435:-
12
T3350155
Locknut, Thin, M16
175:-
13
T2059601
Chain Rubbing Strip
860:-
14
T2059509
Chainguard, Fab, Blk
1600:-
15
T2059566
Brackets, Chain Adjuster, åtgår 2st
470:-
16
T3330809
Screw, Chain Adjuster, åtgår 2st
175:-
17
T3500042
Circlip, Chain Adjuster, åtgår 2st
20:-
18
T3331041
Screw, Pan/Hd, Tx, M6 x 25, Enc
20:-
19
T2059610
Rsu, Preload Adjustable, åtgår 2st
157308 »
13370:-
20
T3205457
Bolt, HHF, M8 x 16, Raw, Enc, åtgår 4st
30:-
21
T3555033
Washer, 8.4 x 24 x 2, åtgår 4st
45:-
22
T3350216
Threaded Insert, M6, åtgår 3st
65:-
23
T3700192
P Clip, ID 8mm
190:-
24
T3331042
Screw, Pan/Hd, Tx, M6 x 12, Enc
25:-
25
T3330231
Screw, But/HD, M6 x 25, S/S, Blk
210:-
26
T3205063
Bolt, RHHF, Domed, M6 x 16, S/S
60:-
27
T3450028
Moulding Cap 24 A/F
60:-
28
3350009-T0301
Washer, M6
105:-
