1
T2059600

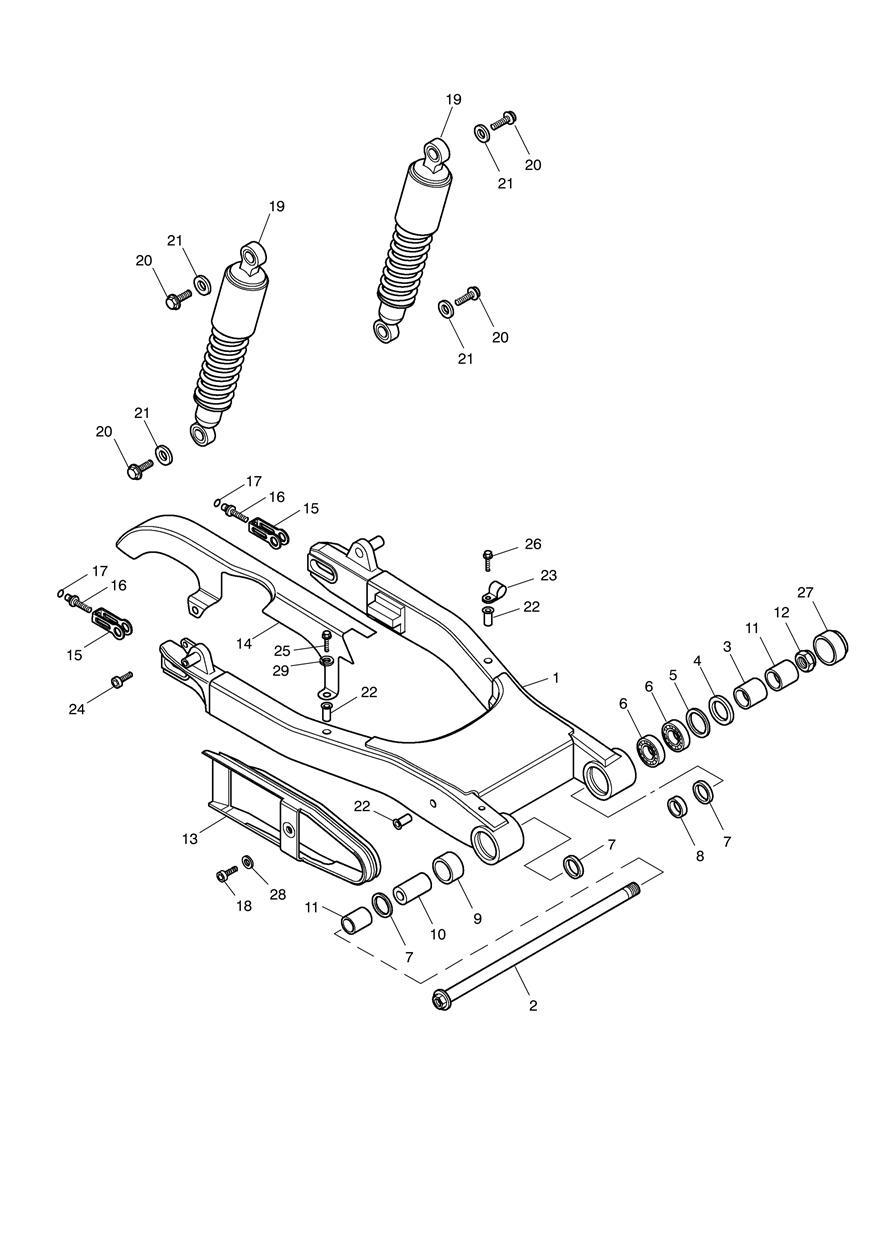

Swinging arm assembly
> 713426 - Inc bearings etc, items: 4,5,6,7,9 & 22)
22515:-
1
T2050307
Swinging Arm Assembly, 90% Gloss
713427 > - Inc bearings etc, items: 4,5,6,7,9 & 22)
20730:-
2
T2059590
Spindle, Bolt, Swinging Arm
2340:-
3
T2059591
Spacer, Outrigger, Inner
235:-
4
T3600044
Oil Seal, 35 25 4
170:-
5
T3500204
Circlip, Int, 35 x 1.5
20:-
6
T3800081
Bearing, Ball, 17 35 10, åtgår 2st
315:-
7
T3600170
Seal, SD 25 32 04, åtgår 3st
205:-
8
T2054063
Spacer, 25 x 17 x 8.5
130:-
9
T3800014
Roller bearing
235:-
10
T2054344
Sleeve, Ground, 25 x 17 x 37
225:-
11
T2059592
Spacer, Outrigger, Outer, åtgår 2st
435:-
12
T3350155
Locknut, Thin, M16
175:-
13
T2059601
Chain Rubbing Strip
860:-
14
T2059509
Chainguard, Fab, Blk
> 468389
1600:-
14
T2059539
Chainguard, Fab, Blk
468390 > 611134 (except 611105)
1500:-
14
T2059540
Chainguard, Chrome
611135 > (inc 611105)
1565:-
15
T2059566
Brackets, Chain Adjuster, åtgår 2st
470:-
16
T3330809
Screw, Chain Adjuster, åtgår 2st
175:-
17
T3500042
Circlip, Chain Adjuster, åtgår 2st
20:-
18
T3331041
Screw, Pan/Hd, Tx, M6 x 25, Enc
20:-
19
T2059610
Rsu, Preload Adjustable, åtgår 2st
> 468389
13370:-
19
T2055025
RSU, Preload Adjustable, åtgår 2st
468390 > 580693
11175:-
19
T2055026
RSU, Preload Adjustable, åtgår 2st
580694 >
11545:-
20
T3205457
Bolt, HHF, M8 x 16, Raw, Enc, åtgår 4st
> 465269
30:-
20
T3205457
Bolt, HHF, Lghtd, M8 x 20, Enc, åtgår 4st
465270 >
30:-
21
T3555033
Washer, 8.4 x 24 x 2, åtgår 4st
> 465269
45:-
22
T3350216
Threaded Insert, M6, åtgår 3st
65:-
23
T3700192
P Clip, ID 8mm
190:-
24
T3331042
Screw, Pan/Hd, Tx, M6 x 12, Enc
25:-
25
T3331234
Screw, Torx, P/H, M6 x 20, Slv
90:-
26
T3203203
Bolt, HHF, Lghtd, M6 x 16, Slv
55:-
27
T3450028
Moulding Cap 24 A/F
60:-
28
T3555004
Washer, 6.4 x 14 x 1.6
25:-
29
T3555004
Washer, 6.4 x 14 x 1.6
468390 >
25:-
