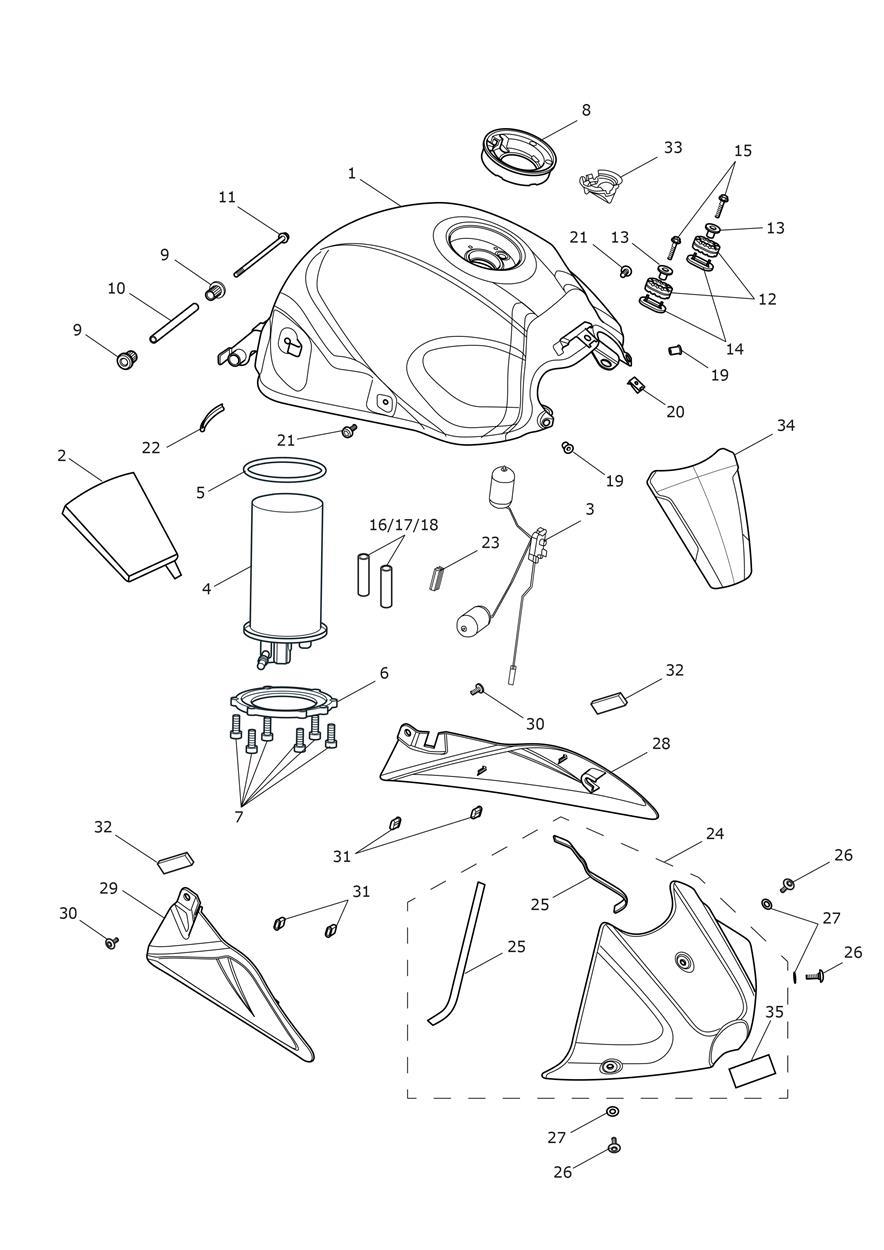

3
T2401326
Level Sender
2095:-
4
T2400499
Fuel Pump
9620:-
5
T2401887
Seal, Fuel Pump Module
145:-
6
T2401250
Location Plate, Fuel Pump
630:-
7
T3331234
Screw, Torx, P/H, M6 x 20, Slv, åtgår 6st
90:-
8
T2405034
Seal, Fuel Filler Cap
130:-
9
T2400446
Rubber Bush, åtgår 2st
55:-
10
T2404416
Spacer, 10 x 129 x 1.55mm
245:-
11
T3204087
Bolt, RHHF, M6 x 147, S/S
55:-
12
T3020605
Grommet, Castellated, Oval, åtgår 2st
65:-
13
T3010710
Flanged Sleeve, 6.4 x 9.6 x 13.4, åtgår 2st
60:-
14
T3550266
Washer, Oval, Tabbed, 1.6mm Thick, åtgår 2st
35:-
15
T3200148
Bolt, M6 x 30, Silver, åtgår 2st
75:-
16
T3620016
Hose, Formed, Drain
230:-
17
T3620017
Hose, Formed, Breather
830:-
18
T3620018
Hose, Formed, Breather, Evap
250:-
19
T3350050
Wellnut, M5, åtgår 2st
110:-
20
T3350123
Nut, Captive, M5, Non-Secured
45:-
21
T3331517
Screw, P/HD Tx, Shld, M6 x 16, S, åtgår 2st
20:-
22
T3660033
Trim, Tank Flange, 120mm
95:-
23
T2401240
Clip, Baffle, Plastic
75:-
24
T2306587-PS
Cover Panel, Pntd, Matt Black
White bikes > 462437
6335:-
24
T2306587-PR
Cover Panel, Painted
Phantom Black
6335:-
24
T2306587-NW
Cover Panel, Painted
Crystal White
9610:-
24
T2306587-CW
Cover Panel, Painted
Diablo Red > 549576
9610:-
24
T2306587-FI
Cover Panel, Painted
Sulphur Yellow; 549577 > 602552
9610:-
24
T2306587-JZ
Cover Panel, Painted
Matt Caspian; 602553 > 657552
9610:-
24
T2306652-FA
Cover Panel, Painted
Racing Yellow; Speed 94 - Includes plaque, item 35
9610:-
24
T2306652-PG
Cover Panel, Painted
Jet Black; Speed 94 - Includes plaque, item 35
9610:-
25
T2306572
Foam, Tape, Cover Panel, åtgår 2st
95:-
26
T3331063
Bolt, But/Hd, M5 x 17, Slv, åtgår 3st
35:-
27
T3550094
Washer, Nylon, 12.45x14x0.76, åtgår 3st
20:-
28
T2306603
Infill, Fuel Tank, LH
265:-
29
T2306604
Infill, Fuel Tank, RH
265:-
30
T3331043
Screw, Pan/Hd, Tx, M6 x 12, Slv, åtgår 2st
20:-
31
T2204745
Grommet, Secondary Cvr Brkt, åtgår 6st
45:-
32
T3660171
Pad, Rubber, 30 x 10 x 5, thick, åtgår 2st
135:-
33
T2406548
Moulding, Fuel Filler Baffle
519317 >
630:-
34
T2408600
Tank Pad Rubber
602553 >
355:-
35
T2045061
Plaque, Special Edition, Cover Panel
Speed 94 Only
1590:-
