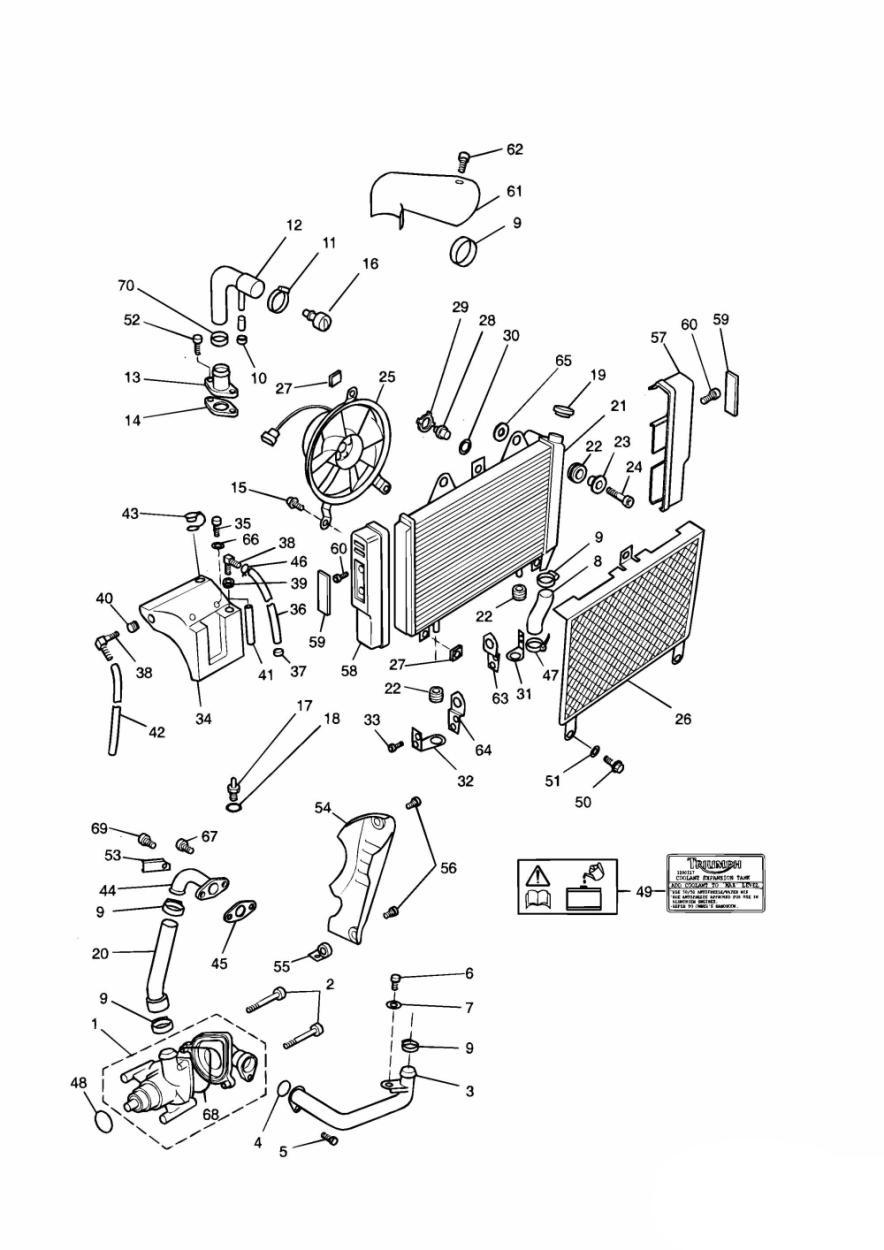

11009
92065-097
GASKET,DRIN PLUG, åtgår 2st
17:-
13169
13169-1967
PLATE,BREATHER
60:-
16165
16165-1053
SEPARATOR,OIL
439:-
49034
49034-1074
PAN-OIL
2388:-
92037
92037-1539
CLAMP,WIRING HARNESS
46:-
92066
92066-1174
PLUG,OIL DRAIN,12X15, åtgår 2st
54:-
92170
92037-1998
CLAMP
55:-
1
2100000-T0301
Water pump assy
4740:-
2
T3205075
Bolt, HHF, Lghtd, M6 x 65, Slv, åtgår 2st
65:-
4
T3600036
O ring
25:-
5
T3203222
Bolt, HHF, M6 x 12, Slv
30:-
6
T3205653
Bolt, HHF, Lghtd, M8 x 30, Slv
25:-
8
T2100071
Hose, Radiator, Bottom, 3 Cyl
1035:-
9
T2102242
Hose Clip, 23 x 35, åtgår 4st
130:-
12
2100009-T0301
Top hose
710:-
14
T2100054
Gasket, Cyl Head Outlet
30:-
15
T3331517
Screw, P/HD Tx, Shld, M6 x 16, S, åtgår 2st
20:-
17
2102150-T0301
Sensor temperature
670:-
19
T2100074
Cap Assy
» 31736 Not US, FR, SG
465:-
20
T2100110
Hose outlet
390:-
22
T3020300
Grommet, Rubber, åtgår 4st
60:-
24
T3050323
Screw, Cap/HD, M8 x 30, Slv, åtgår 2st
70:-
25
2101202-T0301
Fan assembly
6975:-
27
T3350111
Nut, Captive, M6, åtgår 6st
85:-
29
2101274-T0301
Retainer
20:-
31
T2101314
Mounting bracket
» 36433 Lower LH
80:-
32
T2101315
Mounting bracket
» 36433 Lower RH
80:-
33
T3203222
Bolt, HHF, M6 x 12, Slv, åtgår 4st
30:-
35
T3331111
Screw, Pan/Hd, Tx, M6 x 55, Slv, åtgår 2st
» 20131 900cc Engine
110:-
35
T3300062
Pop Rivet, åtgår 2st
20132 » 900cc Engine
40:-
36
T3620305
Pipe
Radiator to expansion tank
90:-
38
T2100405
Elbow, ID 8.0 Tube, åtgår 2st
25:-
40
T3450035
Grommet, Dia 8, Dia 12.5, 3
35:-
41
T3620320
Pipe, Expansion Tank, Internal
Internal Expansion tank
30:-
42
T3620305
Pipe
90:-
43
T2100997
Cap, Expansion Tank
Expansion tank
165:-
45
T2102143
Gasket
25:-
46
T3700440
Clip, Hose, 11-12.5mm
90:-
47
T3700015
Cable Tie, 185.7 Long
20:-
48
3600160-T0301
O Ring, Water Pump
150:-
49
T3900016
Label
» 16921 Coolant tank UK, NZ, AU, ZA, GR, CY, HK, MY, SE
50:-
49
T3900016
Label
» 16921 Coolant tank NL
50:-
50
3330504-T0301
Screw, M6 x 20, åtgår 3st
M6 x 20mm
45:-
52
T3330334
Screw, Tx, Pan/HD, M6 x 16, Slv, åtgår 3st
45:-
53
T2100049
Bracket
35:-
54
2100043-T0301
Cover
560:-
55
2100037-T0301
Bracket
210:-
56
T3203222
Bolt, HHF, M6 x 12, Slv, åtgår 2st
30:-
60
T3331043
Screw, Pan/Hd, Tx, M6 x 12, Slv, åtgår 4st
20:-
62
T3051058
Capscrew
» 29380 M6 x 20mm
20:-
63
T2101314
Radiator bracket
» 36433 Upper LH
80:-
64
T2101315
Radiator bracket
» 36433 Upper RH
80:-
65
T3555033
Washer, M8, åtgår 2st
M8
45:-
67
T3331043
Capscrew, M6x12
M6 x 12mm
20:-
68
T3600230
Seal
95:-
69
T3331234
Screw, Torx, P/H, M6 x 20, Slv
90:-
70
T2102112
Hose Clip
80:-
